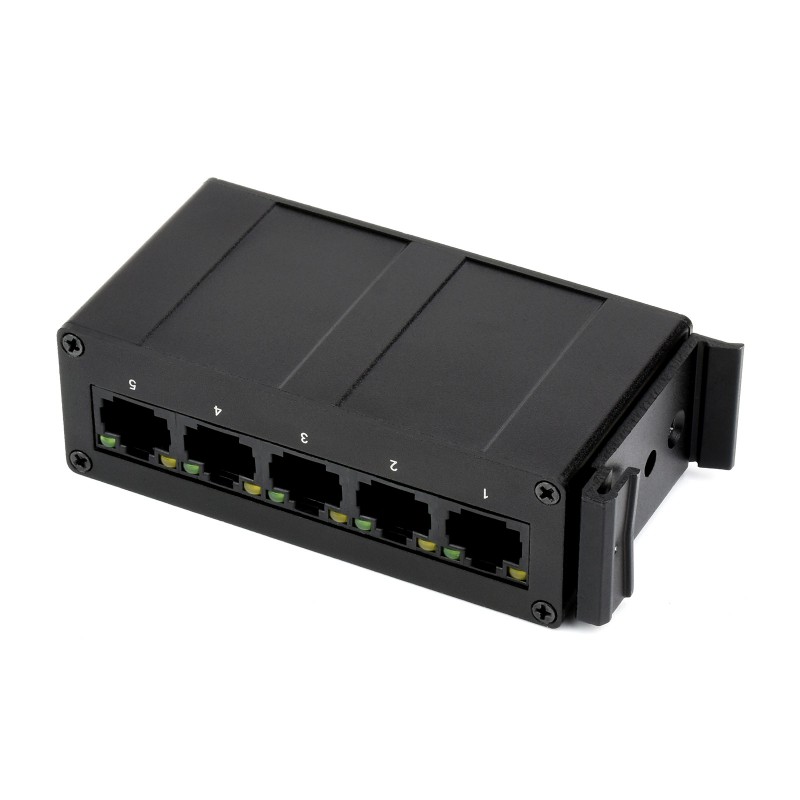

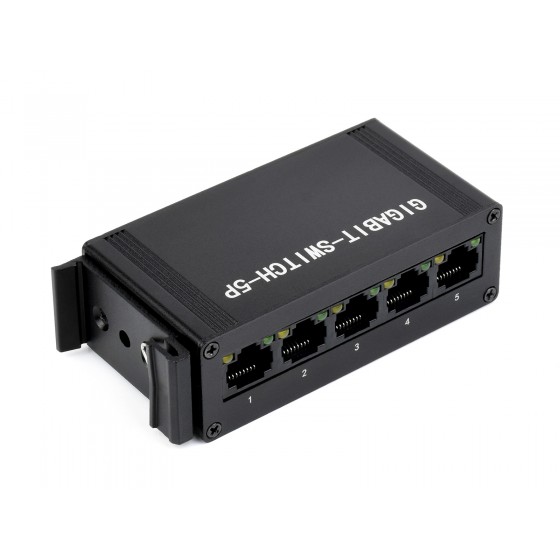

Waveshare Industrial 5P Gigabit Ethernet Switch Full-Duplex 10/100/1000M DIN Rail Mount

Availability:

In stock


SKU: 1300106
  1. Part Number: Gigabit-Switch-5P
  2. Brand: Waveshare
  3. Type: Ethernet Switch
  4. Full-Duplex: 10/100/1000M

For bulk orders or B2B inquiries, email us: sales@robu.in

 2,282.00 (Incl. GST)

In stock

Select below products to add together

Pro-range 12V 1A Power Adapter with 5.5 X 2.1mm DC Plug ₹ 429

2,282.00 (Incl. GST)

Purchase this product now and earn 23 Robu Points!

Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

Brand: WAVESHARE
Category: IoT WIFI Smart Switches

Industrial-grade Ethernet Switches are specifically designed to connect devices in network environments that are subject to extreme operating temperatures of -40°C to 75°C, vibrations, and shocks. They are built to exceed the specifications of commercial switches with industrial safety certification and approval for hazardous locations, making them ideal for use at sites with harsh environmental conditions.

Ethernet switches that feature Industrial Protocol Management support, superior reliability, advanced security, network redundancy, and easy installation and configuration. The IDS Switch portfolio includes support for 10/100/1000 Ethernet and fiber-in unmanaged switches, managed switches, and PoE switches.

Applications:

Waveshare Gigabit Switch 5P Details 12 Waveshare Gigabit Switch 5P Details 13

Dimensions

Waveshare Gigabit Switch 5P Details Size


Features:

  1. Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
  2. Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
  3. Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
  4. Allow forwarding 9216 bytes huge data packet on linear speed
  5. Over-voltage protection, effectively preventing damages caused by other high voltage power supply
  6. Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing

Useful Link:

https://www.waveshare.com/wiki/Gigabit-Switch-5P


Packages Includes:

1 x Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount

SKU: 1300106 Category:
Specification:
Item Type:

Other Switches

Switch Type

Gigabit Ethernet Switch

Voltage Rating (V):

5 to 36

Rated Voltage:

5 to 36V

Full-Duplex

10/100/1000M

Temperature

-40°C to 75°C

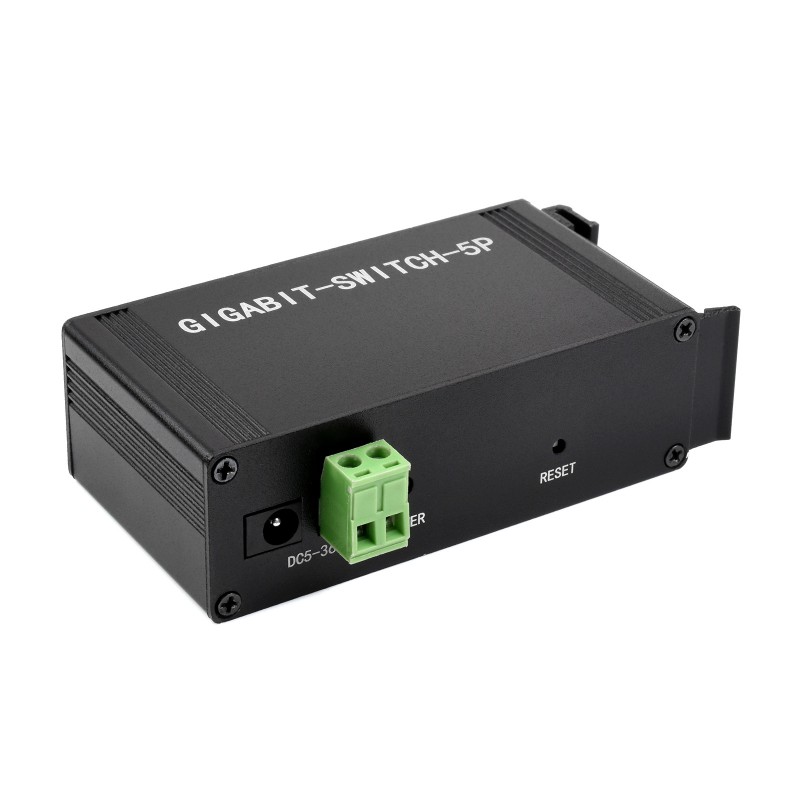

Dual Power Inputs

(DC Jack And Screw Terminal)

Ethernet Ports

5x 10/100/1000M With Auto MDI/MDI-X Support

Weight 0.26 kg
Dimensions 16 × 10 × 55 cm
