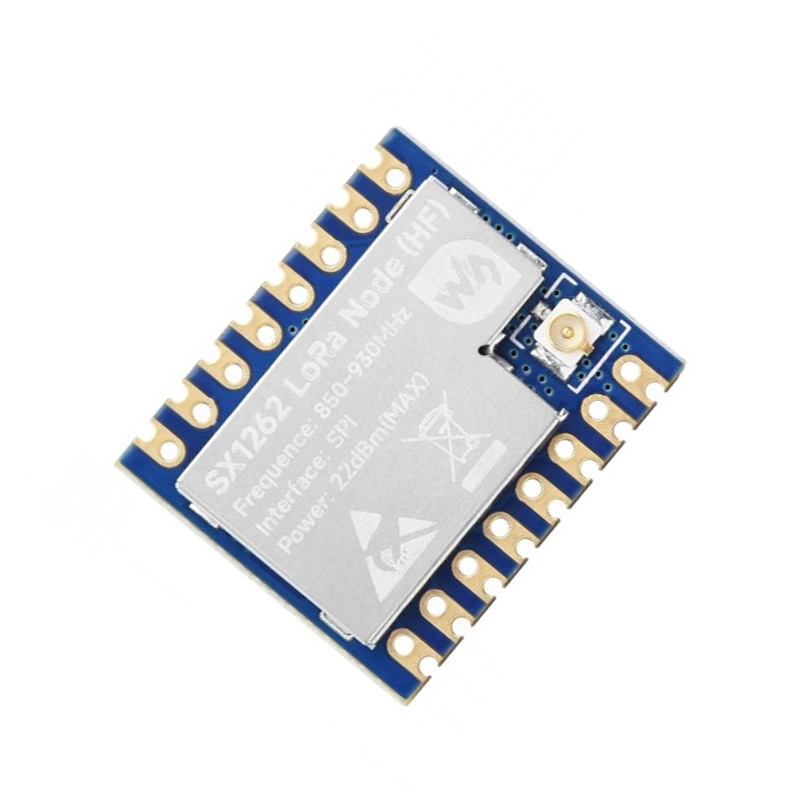

Waveshare Core Sx1262-868M Lora Module
Waveshare Core Sx1262-868M Lora Module - Image 2
Waveshare Core Sx1262-868M Lora Module
Waveshare Core1262 Lf 3

Waveshare Core SX1262-868M LoRa Module

(1 customer review)
Availability:

In stock
SKU: 1174824
Add to Wishlist
  1. Operating voltage: 3.3V
  2. Modulation: LoRa/(G)FSK
  3. Emit power: > 14dBm@3.3V
  4. RF chip: SX1262



For bulk orders or B2B inquiries, email us: sales@robu.in

₹ 726.00 (Incl. GST)

In stock

Select below products to add together

20 CM 40 Pin Dupont Cable Male/Male, Male/Female, Female/Female Cable Combo ₹ 112.1

₹ 726.00 (Incl. GST)

Purchase this product now and earn 8 Robu Points!
Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
6 Months Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: WAVESHARE
Category: Other ESP WIFI Modules

The Core1262-868M is a LoRa core module that incorporates a new-generation SX1262 chip. It has features including mini size, long-range transmission, high anti-interference capability, and so on. The module uses the EU868 band, combined with the LoRa gateway, it can be connected to servers like the TTN server to build the LoRa network.

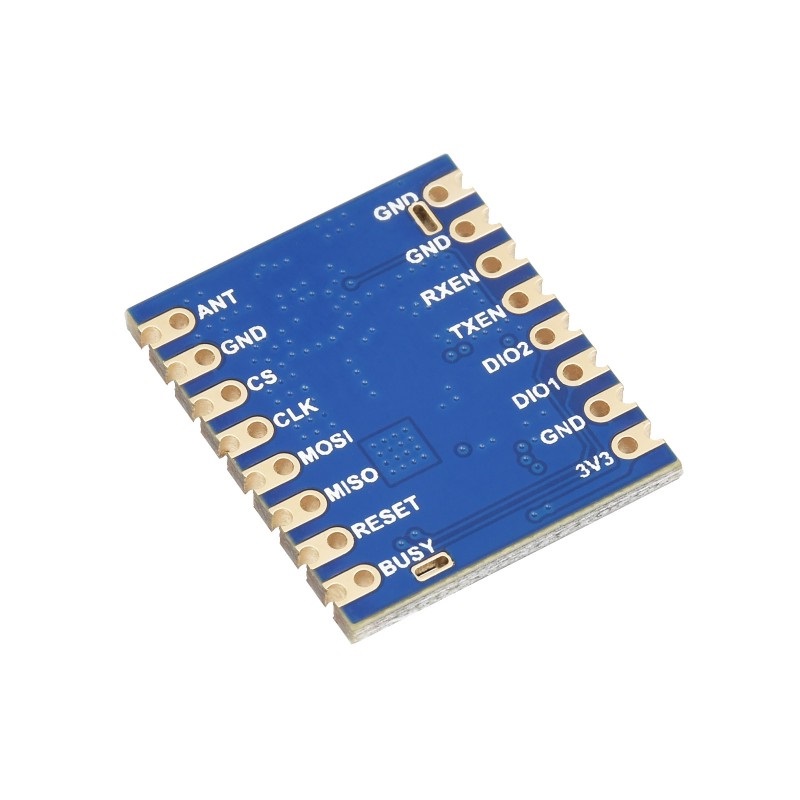

Pinout:

Waveshare Pinout Core

Features:

  1. New-generation SX1262, has higher power efficiency, and longer transmission distance than the traditional SX1278
  2. EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
  3. Comes with rich development resources and a manual (examples for STM32, Raspberry Pi Pico)

Useful Link:

https://www.waveshare.com/wiki/Core1262-868M

Package Includes:

1 x Waveshare Core SX1262-868M LoRa Module



SKU: 1174824 Category:
Item Type:

Lora Module
Frequency Range:

 EU868 (863~870MHz)
Modulation Type

LoRa/(G)FSK
Data Rate

0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK)
Emit Power

 > 14dBm@3.3V
Spreadind factor

 SF5 ~ SF12
Operating voltage

3.3V
Module Power Consumption

Emitting current: 45mA@14dBm, Receiving current: 5.3mA@125KHz
Communication Bus

 SPI
Operating Temperature

 -40 ~ 85?
Connector

Castellated edge / solder holes
Dimensions

 21.00 x 52.00mm
Shipping Weight 0.004 kg
Shipping Dimensions 8 × 6 × 1 cm
6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Based on 1 review

5.0 overall
1
0
0
0
0

Add a review

  1. vu2une (verified owner) –

    It is working fine in TX and RX mode

    vu2une –

Questions and answers of the customers

    Can this module be used for point-to-point communi... Read more
  1. 0 votes
    Q Can this module be used for point-to-point communication using RadioHead library? Does this modul...... Read more answer now
    Asked by Midhun S on January 30, 2022 4:07 pm
    A Yes, the Waveshare Core SX1262-868M LoRa Module ca... Read more
