SEGGER 8.08.00 J-LINK BASE CLASSIC Debugger, ST-LINK/V2 In-Circuit Debugger/Programmer, STM8 and STM32 MCU Family Support

Availability:

Out of stock


SKU: R124080
  1. JTAG emulator for ARM cores
  2. Supports STM8/STM32 MCU families
  3. USB 2.0 full-speed interface
  4. Download speed up to 1 MBytes/second
  5. Operating temperature: +5°C to +60°C
  6. Built-in 20-pin JTAG connector

For bulk orders or B2B inquiries, email us: sales@robu.in

 66,299.00 (Incl. GST)

Out of stock


Free Delivery above ₹499
Free Delivery
above ₹499
1 Year Warranty
1 Year Warranty
Cash On delivery
Cash on Delivery*

Didn’t find what you are looking for?

You must register to use the waitlist feature. Please login or create an account
Brand: SEGGER
Category: PIC Programmer

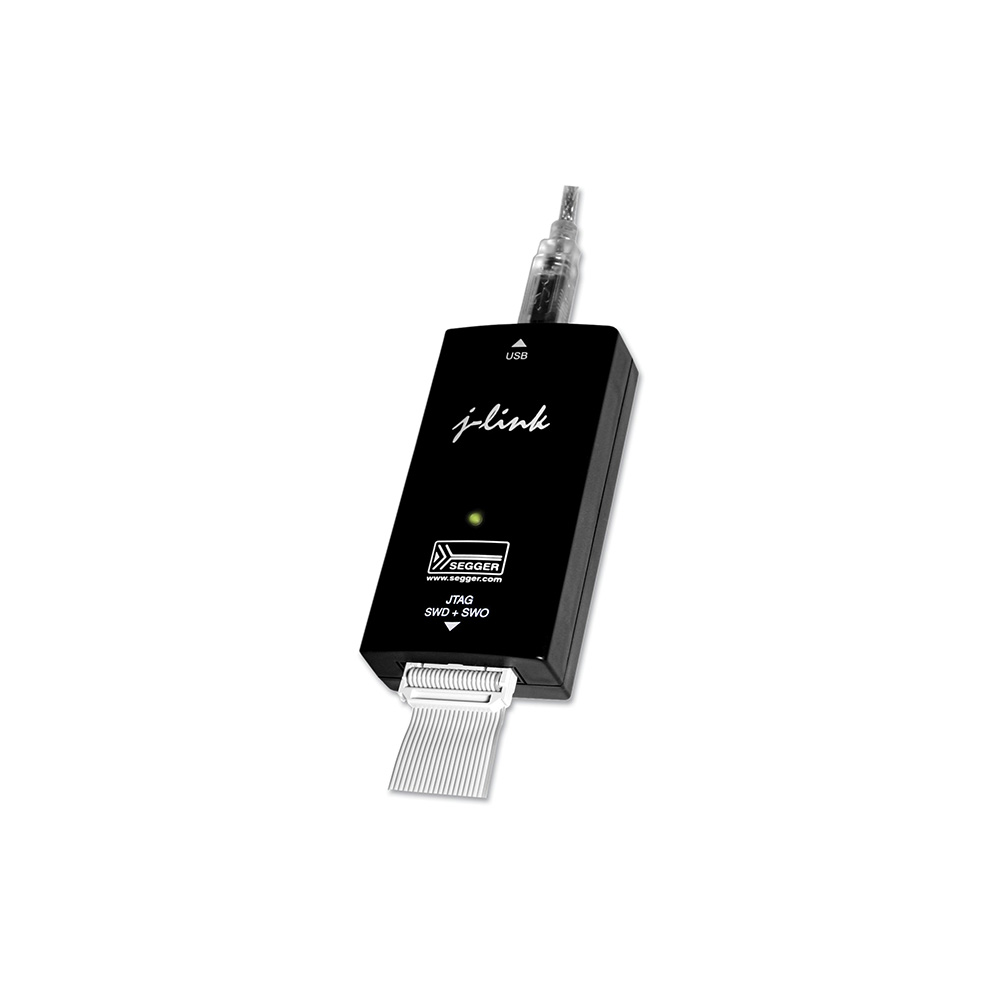

The 8.08.00 is a J-Link USB powered JTAG emulator supporting a large number of CPU cores. It is based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in tens of thousands of places for development and production (flash programming) purposes. It is supported by all major IDEs such as IAR EWARM, Keil MDK, Rowley CrossWorks, Atollic TrueSTUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others. Including all models, more than 100, 000 J-Links have been sold so far, making J-Link probably the most popular emulator for ARM cores and the de facto standard.

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.


Features:

  1. Direct download into flash memory of most popular microcontrollers supported
  2. Download speed up to 1MByte/second
  3. Supports unlimited breakpoints in flash memory
  4. Free software updates, 1 year of support
  5. Supports concurrent access to CPU by multiple applications
  6. Fully plug-and-play compatible
  7. Target power supply: J-Link can supply up to 300mA to target with overload protection
  8. The remote server included, allows using J-Link remotely via TCP/IP
  9. Supports JTAG chains with multiple devices
  10. RDI interface DLL available

Package Includes:

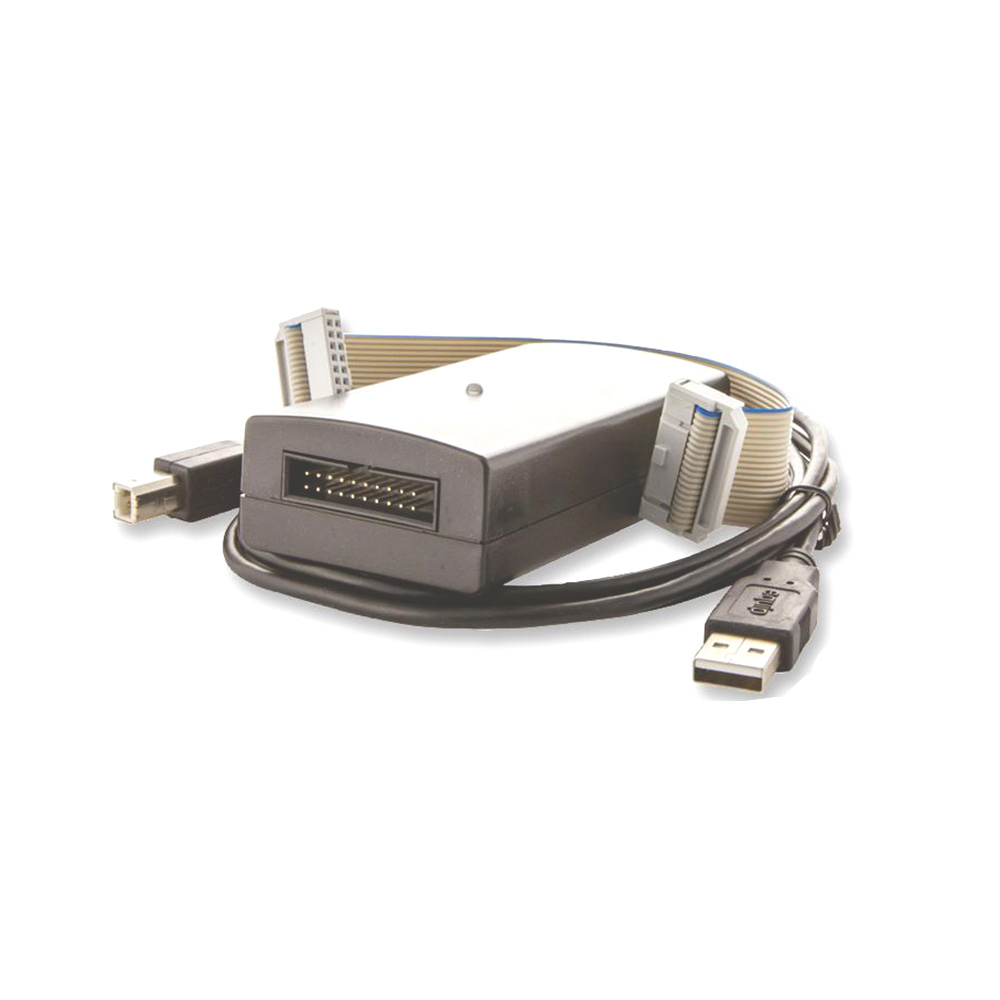

1 x SEGGER J-LINK BASE CLASSIC Debugger
1 x USB Cable for Connection
1 x 20-pin JTAG Connector

SKU: R124080 Category:
Model

SEGGER J-LINK BASE CLASSIC

Operating Temperature (°C)

+5 to +60

Humidity

Max. 90% rH (non-condensing)

Input Supply voltage (V)

4.5 to 5

Shipping Weight 0.235 kg
Shipping Dimensions 23 × 17 × 5 cm
1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.


What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
