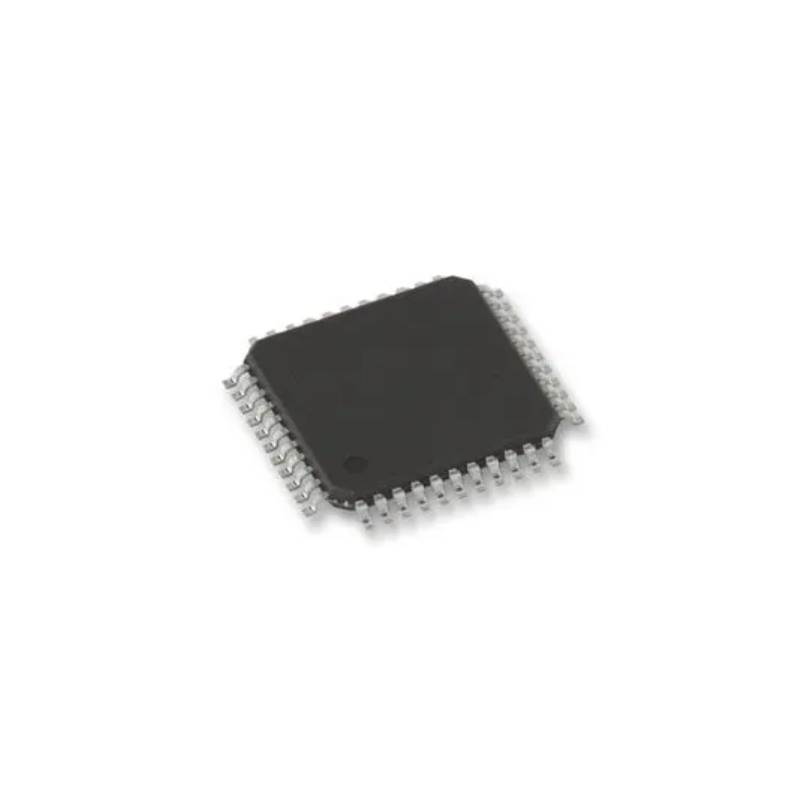

The PIC16F877A-I/PT is a flash based 8bit CMOS microcontroller in 44 pin TQFP package. The device has two 8bit timer/counter with 8bit pre-scaler, one 16bit timer/counter with pre-scaler, brown out reset (BOR) and two capture/compare PWM modules.
Specifications:
IC Case / Package: TQFP
Operating Temperature Min: -40°C
No. of Pins: 44Pins
Product Range: PIC16 Family PIC16F8XX Series Microcontrollers
IC Mounting: Surface Mount
Operating Temperature Max: 85°C
Supply Voltage Min: 4V
Supply Voltage Max: 5.5V
Operating Frequency Max: 20MHz
Program Memory Size: 14KB
Device Core: PIC16
MCU Series: PIC16F8xx
Package Includes:
1 x PIC16F877A-I/PT-MICROCHIP-PIC16F877A-I/PT-8 Bit MCU, Flash, PIC16 Family PIC16F8XX Series Microcontrollers, PIC16, 20 MHz, 14 KB, 44 Pins
