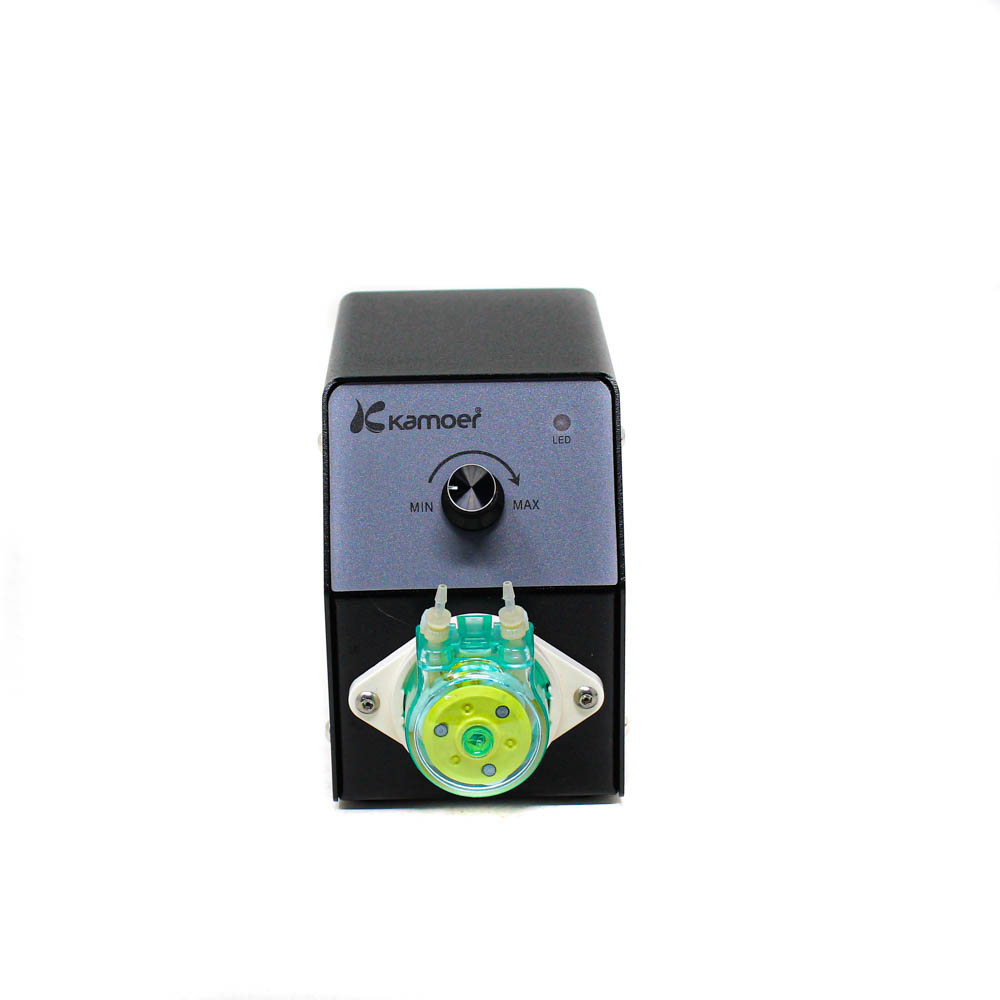

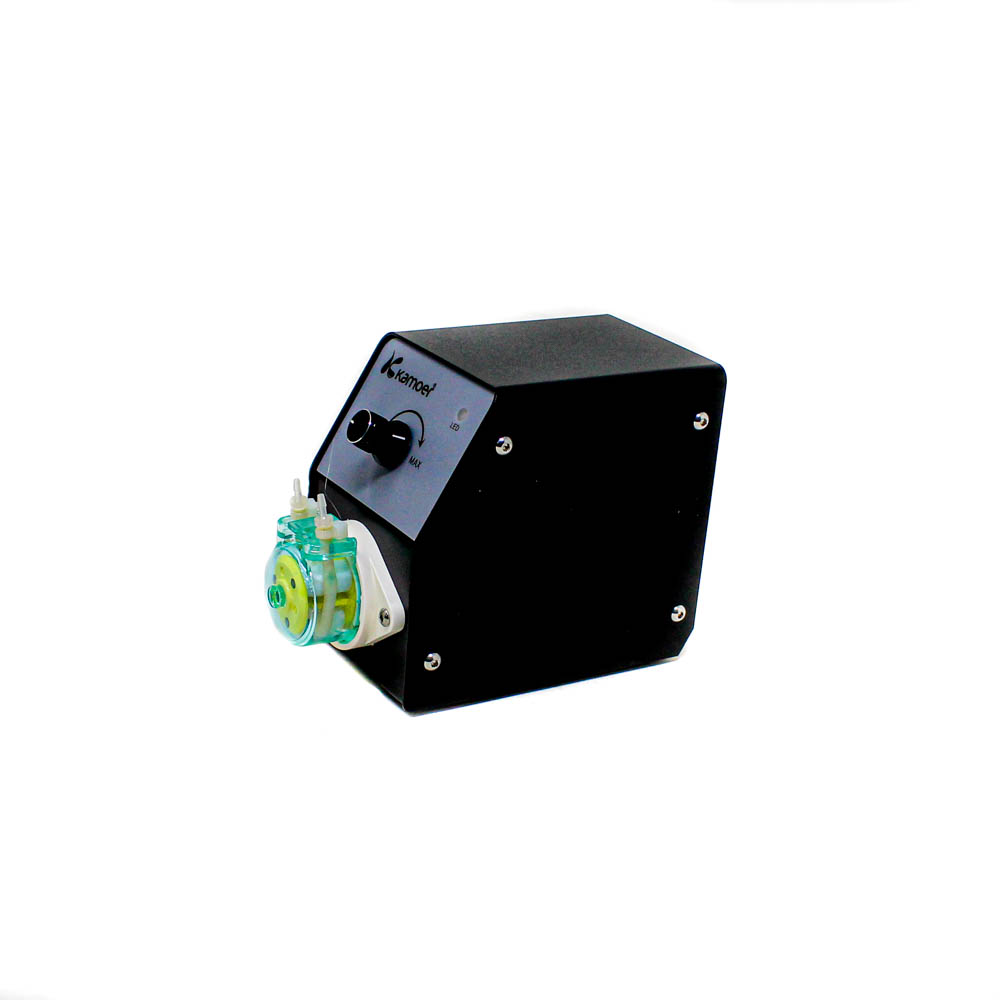

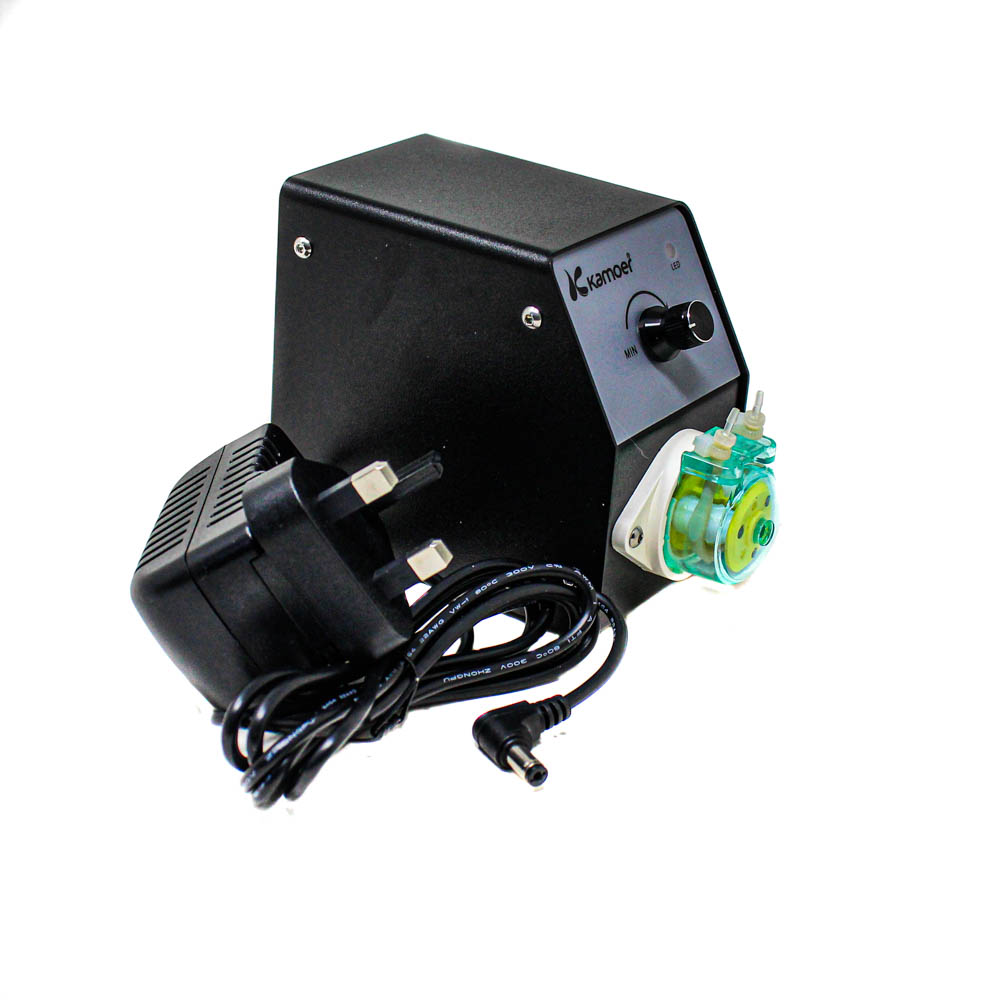

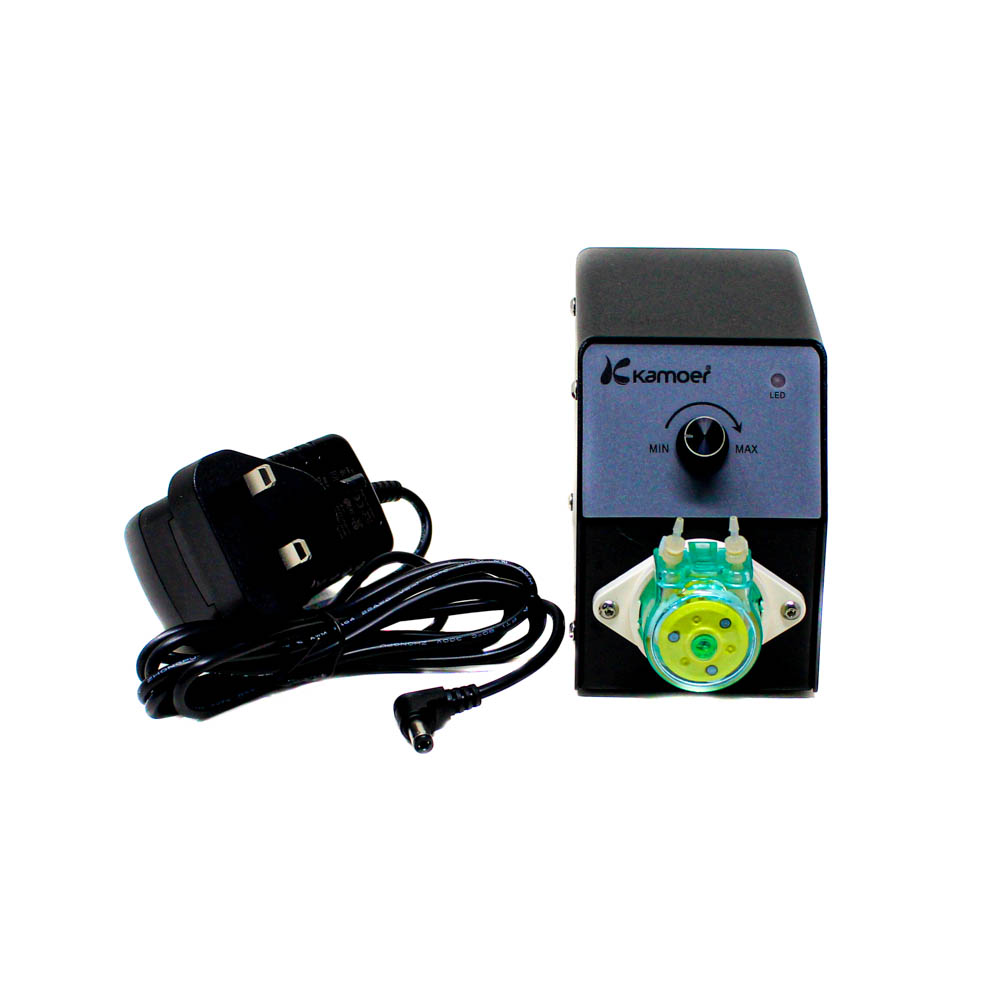

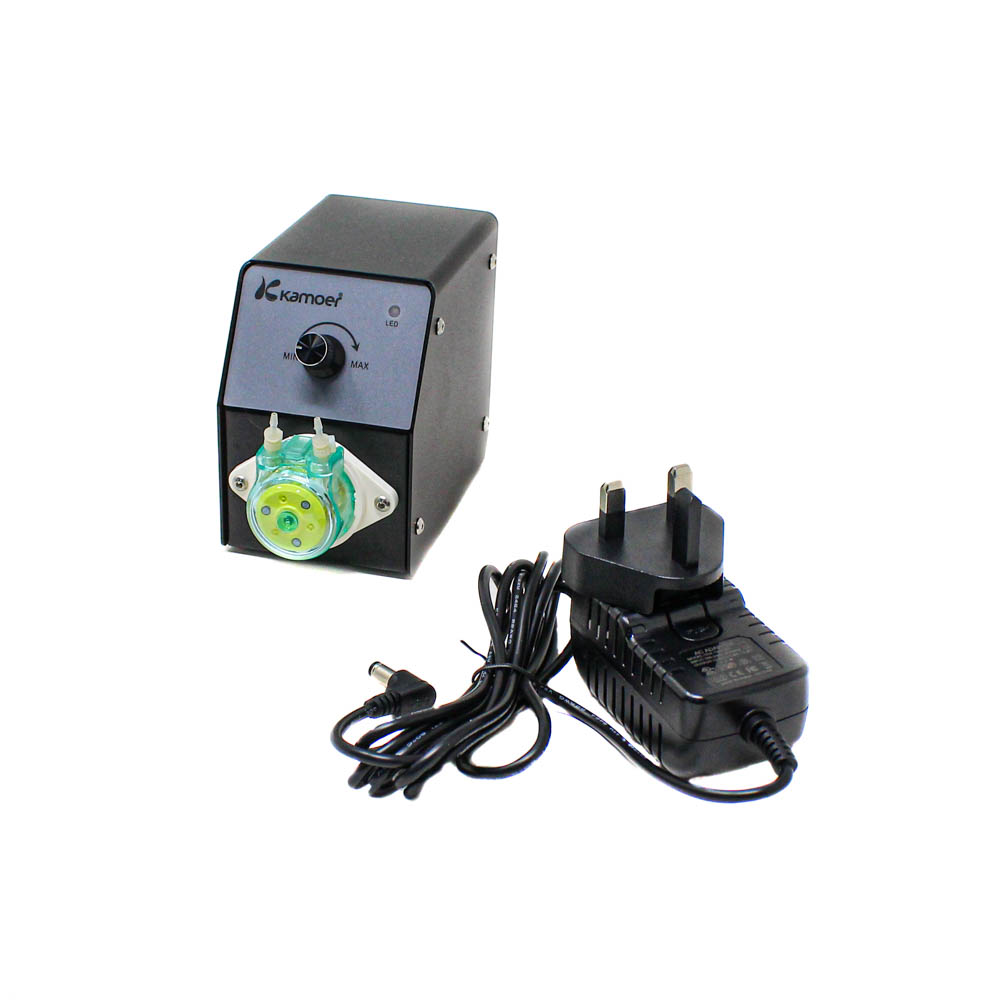

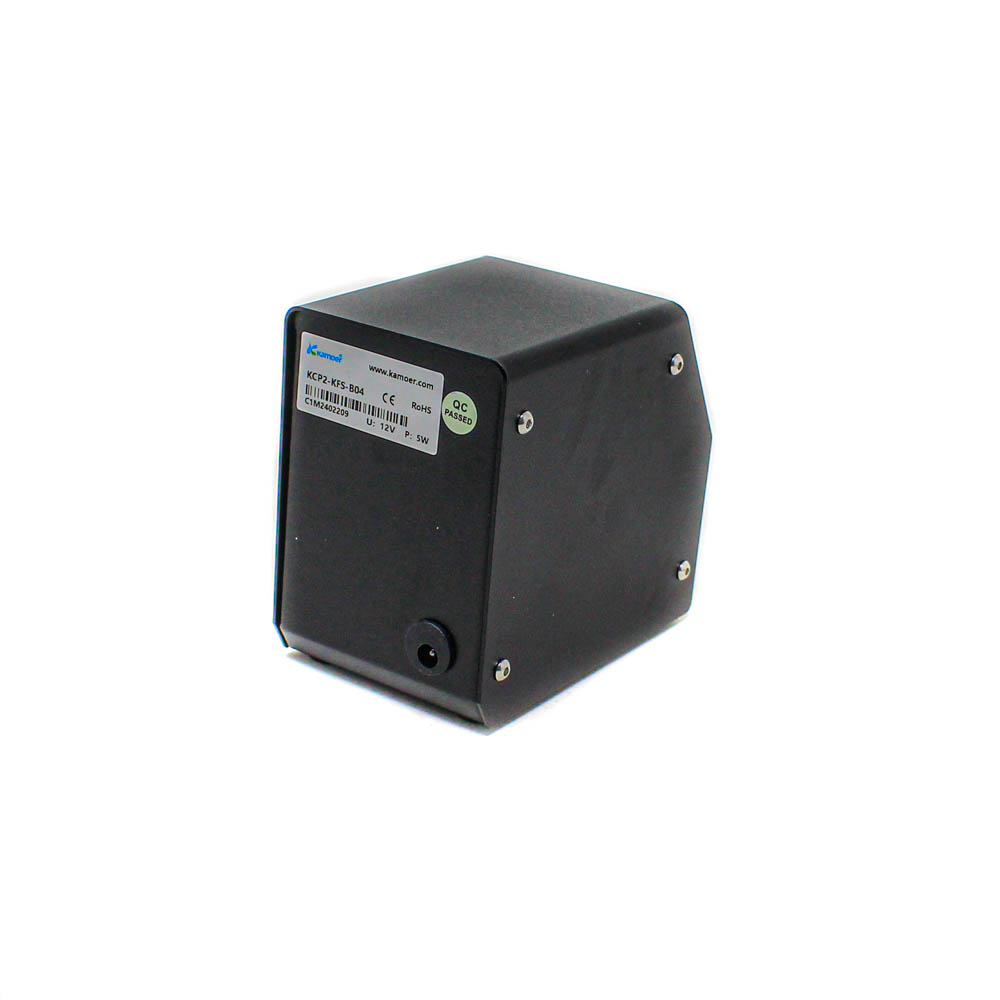

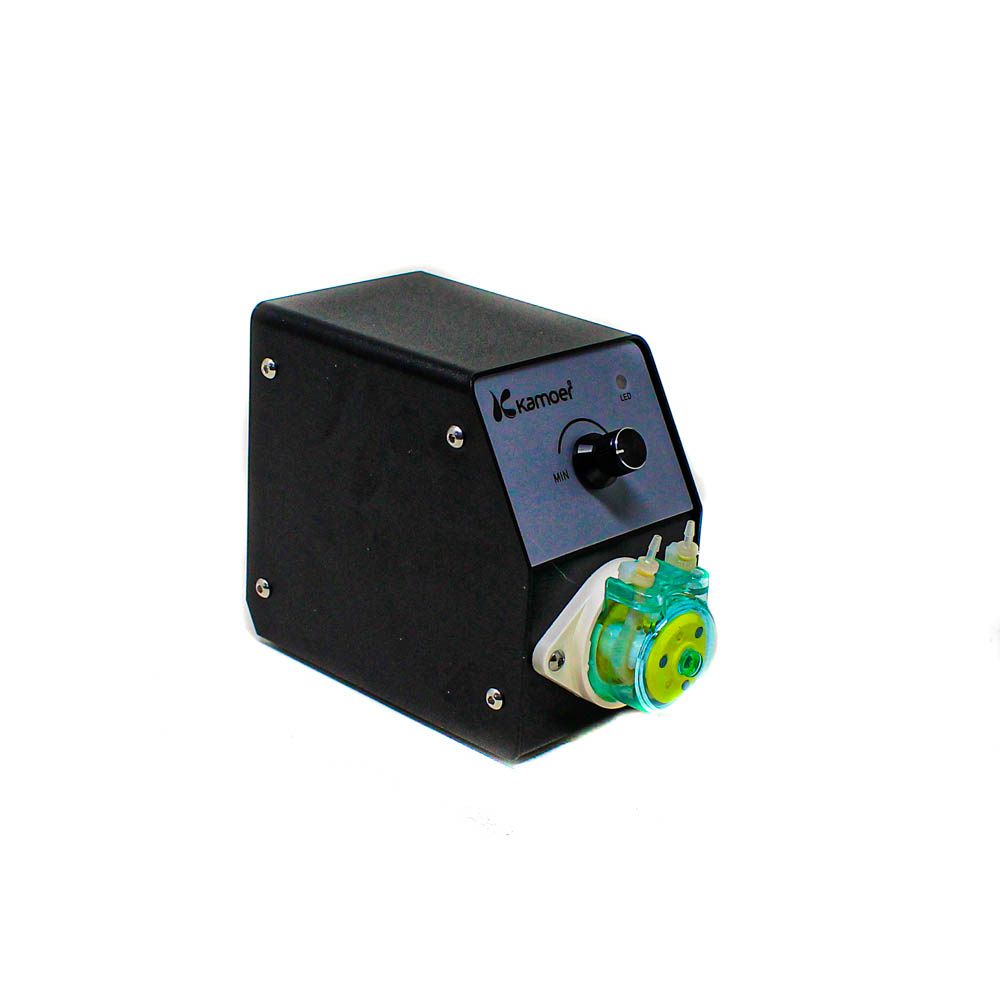

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squish a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.
Application:
- Printing: transferring printing ink
- Transportation: pumping the oil and other liquid
- Aquarium: drawing water from tank, calcium response reaction
- Scientific facility: a laboratory experiment
- Animal disease experiment: blood transfer
Features:
- High flow
- High negative pressure
- Easy to maintenance
- Chemical stability
- Long life
- High repeatability
- Working conditions: Temperature 0~40℃, humidity <80%
- Pump tube selection: Silicone tube, imported Norprene® tube
- Transmission mode: Planetary gear transmission, reduction ratio 1:8
- Pump head: The upper cover is made of engineering plastics, the pump body
- PA and gears are made of synthetic engineering plastics
- Installation method: Straight plate and L plate
Package Includes:
1 x KCP2-KFS-S06 Kamoer Lab Pump
