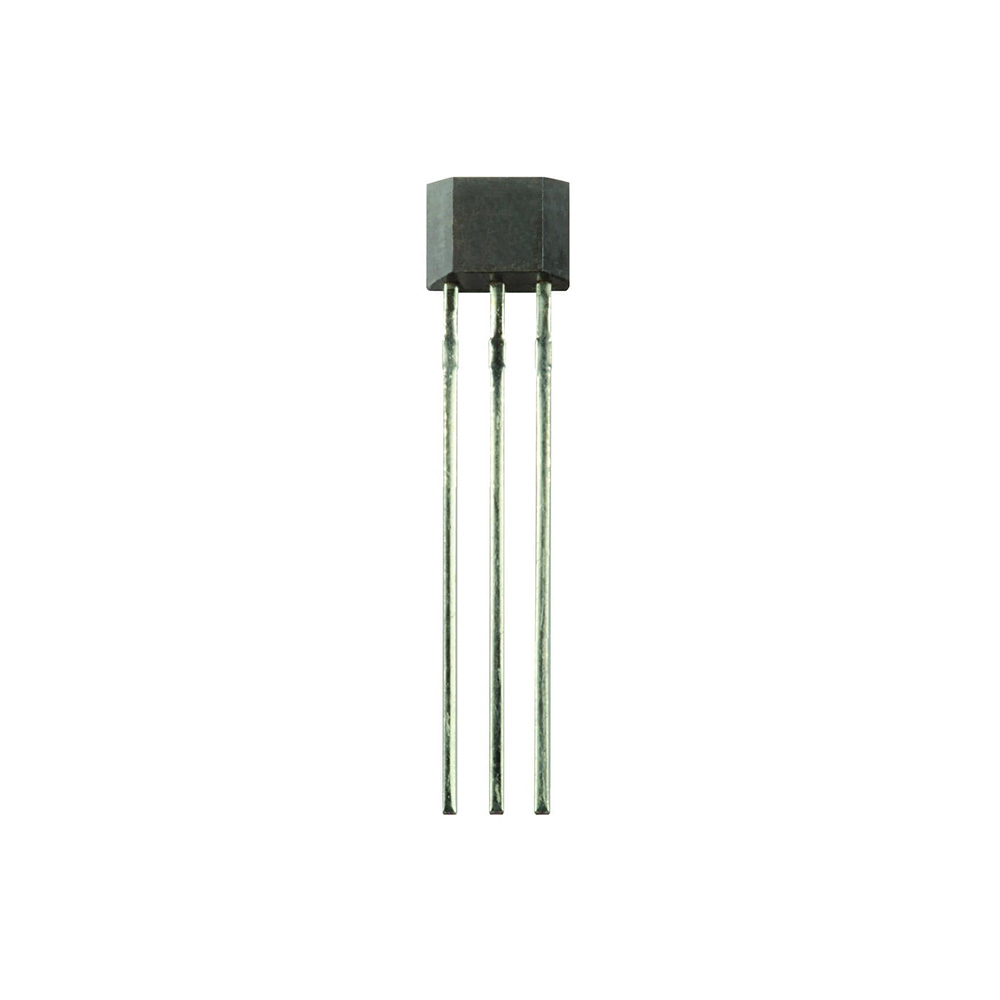

HONEYWELL Hall Effect Magnetic Sensors – SS466A

The Honeywell Board Mount Hall Effect/Magnetic Sensor is a bipolar sensor designed for precise magnetic field detection. It operates with a supply voltage range of 3.8V to 30V and a current consumption of 10 mA. The sensor has an operating point range of 100 G to 180 G and a release point range of -180 G to -100 G. Packaged in a TO-92-Flat-3 case, it is suitable for through-hole mounting and can operate in temperatures from -40°C to +150°C.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Bipolar magnetic field detection
2. Wide operating voltage range of 3.8V to 30V
3. Low operating supply current of 10 mA
4. The high maximum output current of 20 mA
5. A through-hole mounting style for easy installation
6. Reliable operation in extreme temperature environments

Package Includes:

1 x HONEYWELL Hall Effect Magnetic Sensors – SS466A
