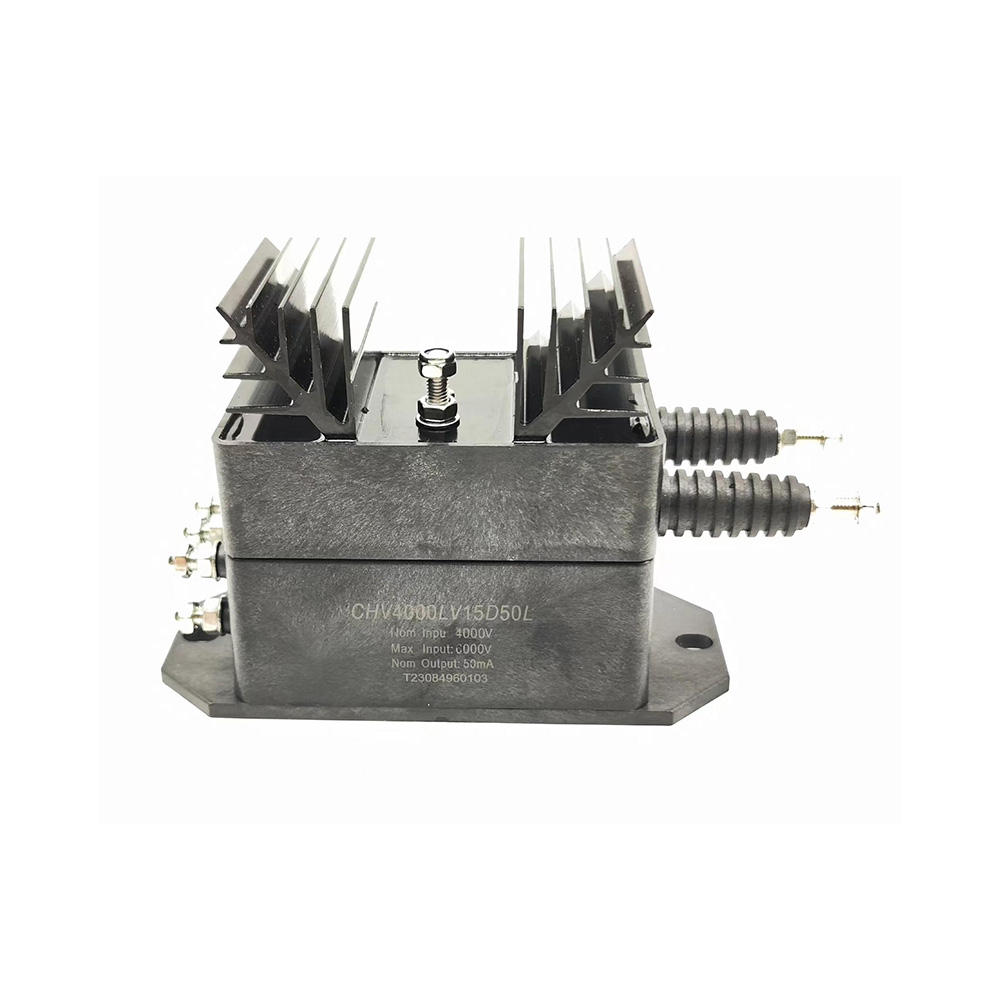

Hall Effect Voltage Sensor – CHV4000LV15D50 (Measuring range 0～±6000V)

This current transducer measurement with a DC ±15~24V supply voltage. It accurately measures DC, AC, and pulse currents with galvanic isolation. It offers high accuracy, good linearity, easy installation, low-temperature drift, and optimized response time with high immunity to interference.

Note: If you require customized products, please feel free to contact us at info@robu.in.

Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Closed-loop (compensated) current transducer
2. Supply voltage: DC ±15~24V
3. Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit.
4. S1–connector Model S3P-V
5. High accuracy
6. Very good linearity
7. Easy installation
8. Low-temperature drift
9. Optimized response time
10. High immunity to external interference

Applications:

1. Variable speed drives
2. Welding machine
3.  Battery supplied applications
4. Uninterruptible Power Supplies
5.  Electrochemical

Package Includes:

1 x Hall Effect Voltage Sensor – CHV4000LV15D50 (Measuring range 0～±6000V)
