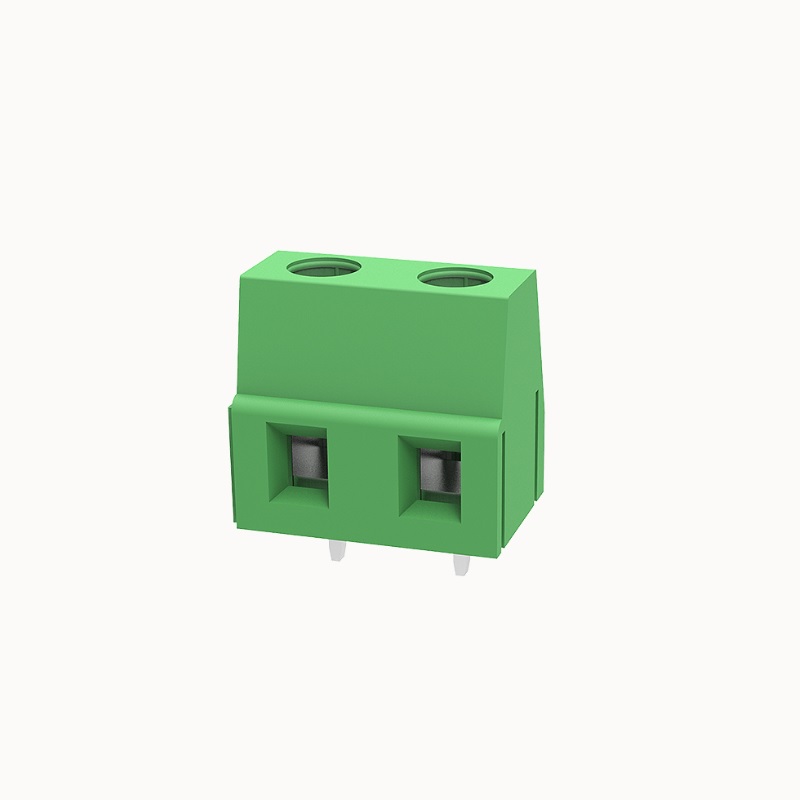

The Degson DG128-7.5-02P is a PCB terminal block used for connecting wires to a printed circuit board or another device. It is designed for a rated current of 18A and a rated voltage of 450V.
The terminal block features a pitch of 7.5mm, which refers to the distance between the centers of adjacent pins. It has a screw connector with a tension sleeve, which means that wires are secured by tightening the screws on the connector to make a secure electrical connection. The tension sleeve feature ensures that the wire strands are held tightly together and inserted into the connector as a single unit, improving reliability and reducing the likelihood of wire breakage or disconnection.
The terminal block can accept wires with a cross-section of 1.0-2.5mm², which refers to the area of the wire’s cross-section. The connector has a green color, which can be used to identify the specific circuit or function that it is connected to.
The contact surface of the terminal block is tin-plated, which provides a protective layer against corrosion and helps to ensure good electrical conductivity. The operating temperature range is -40°C to +105°C (-40°F to +221°F), making it suitable for use in a wide range of environments.
Specifications and Features:
- Number of Pins: 2
- Pitch: 7.5mm
- Rated voltage: 450V
- Rated current: 18A
- Wire gauge: 16-12 AWG
- Wire strip length: 8mm
- Insulation material: PA66, UL94V-0
- Contact plating: Tin
- Operating temperature: -40°C to +105°C
- Wire connection method: Screw connection with tension sleeve
- Color: Green
