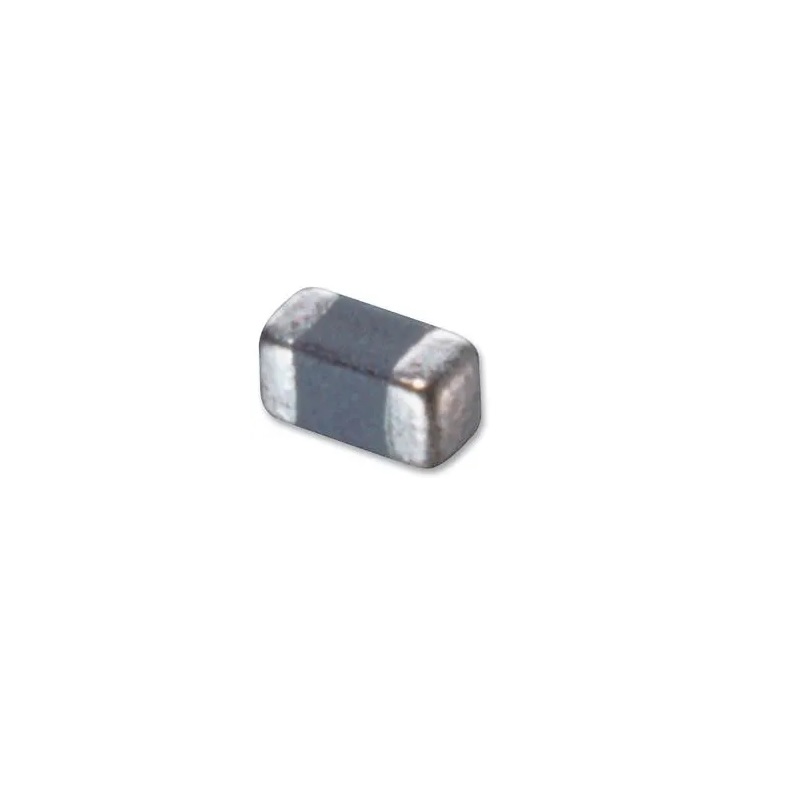

Blm18Pg221Sn1D-Murata-Ferrite Bead, 0603 [1608 Metric], 220 Ohm, 1.4 A, Blm18P, 0.1 Ohm, ± 25%

BLM18PG221SN1D-MURATA-Ferrite Bead, 0603 [1608 Metric], 220 ohm, 1.4 A, BLM18P, 0.1 ohm, ± 25%

Availability:

In stock
SKU: R112443
Add to Wishlist

MPN: BLM18PG221SN1D
Brand: MURATA

For bulk orders or B2B inquiries, email us: sales@robu.in

₹ 1.85 (Incl. GST)

In stock

Purchase this product now and earn 1 Robu Point!

✓Very Low Stock. Order Now !

Bulk Order
Have a Bulk Order?
Click Here
Need Support
Need Support?
Click Here
Free Delivery above ₹999
Free Delivery
above ₹999
1 Year Warranty
15 Days Warranty
Cash On delivery
Cash on Delivery*
Didn’t find what you are looking for?

Brand: Murata
Category: Ferrite Beads

BLM18PG221SN1D-MURATA-Ferrite Bead, 0603 [1608 Metric], 220 ohm, 1.4 A, BLM18P, 0.1 ohm, ± 25%

Specifications:

  1. Ferrite Bead Case/Package: 0603 [1608 Metric]
  2. Impedance: 220ohm
  3. DC Current Rating: 1.4A
  4. DC Resistance Max: 0.1ohm
  5. Impedance Tolerance: 25%
  6. Product Length: 1.6mm
  7. Product Width: 0.8mm
  8. Product Height: 0.8mm
  9. Ferrite Mounting: SMD
  10. Operating Temperature Min: -55°C
  11. Operating Temperature Max: 125°C
  12. Product Range: BLM18P

Package  Includes:

1 x BLM18PG221SN1D-MURATA-Ferrite Bead, 0603 [1608 Metric], 220 ohm, 1.4 A, BLM18P, 0.1 ohm, ± 25%

SKU: R112443 Category:
Specification:
Impedance (Ω)

220
Tolerance (%):

25
DC Current(A)

1.4
Weight 0.01 kg
Dimensions 3 × 3 × 2 cm
