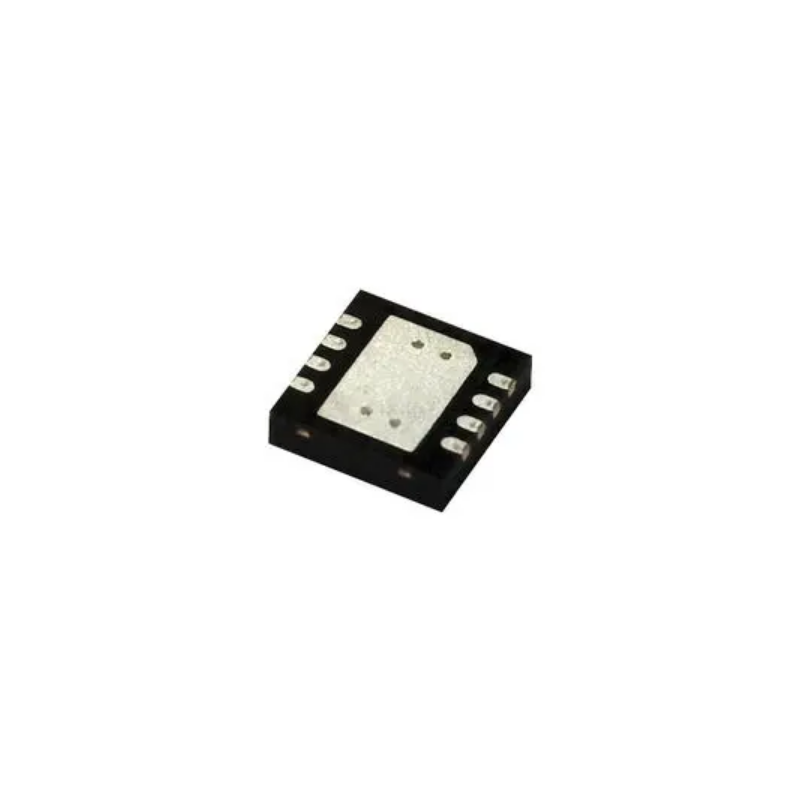

ADM7172 is a CMOS, low dropout linear regulator (LDO). It operates from 2.3V to 6.5V and provides upto 2A of output current. This high output current LDO is ideal for regulation of high performance analog and mixed-signal circuits operating from 6V down to 1.2V rails. Using an advanced proprietary architecture, the device provides high power supply rejection and low noise, and achieves excellent line and load transient response with just a small 4.7µF ceramic output capacitor. It is widely used in application such as regulation to noise sensitive applications: ADC and DAC circuits, precision amplifiers, PLLs/VCOs, and clocking ICs, communications and infrastructure, medical and healthcare, industrial and instrumentation etc.
Specifications:
IC Case / Package: LFCSP-EP
Operating Temperature Min: -40°C
No. of Pins: 8Pins
Product Range: 3.3V 2A LDO Voltage Regulators
IC Mounting: Surface Mount
Operating Temperature Max: 125°C
No. of Outputs: 1Outputs
Input Voltage Max: 6.5V
Input Voltage Min: 2.3V
Output Voltage Nom: 3.3V
Output Type: Fixed
Output Current Max: 2A
Package Includes:
1 x ADM7172ACPZ-3.3-R7-ANALOG DEVICES-ADM7172ACPZ-3.3-R7-LDO Voltage Regulator, Fixed, 2.3 V to 6.5 V in, 3.3 V out, 2 A out, LFCSP-EP-8
