In stock
₹ 45.00 (Incl. GST)
In stock

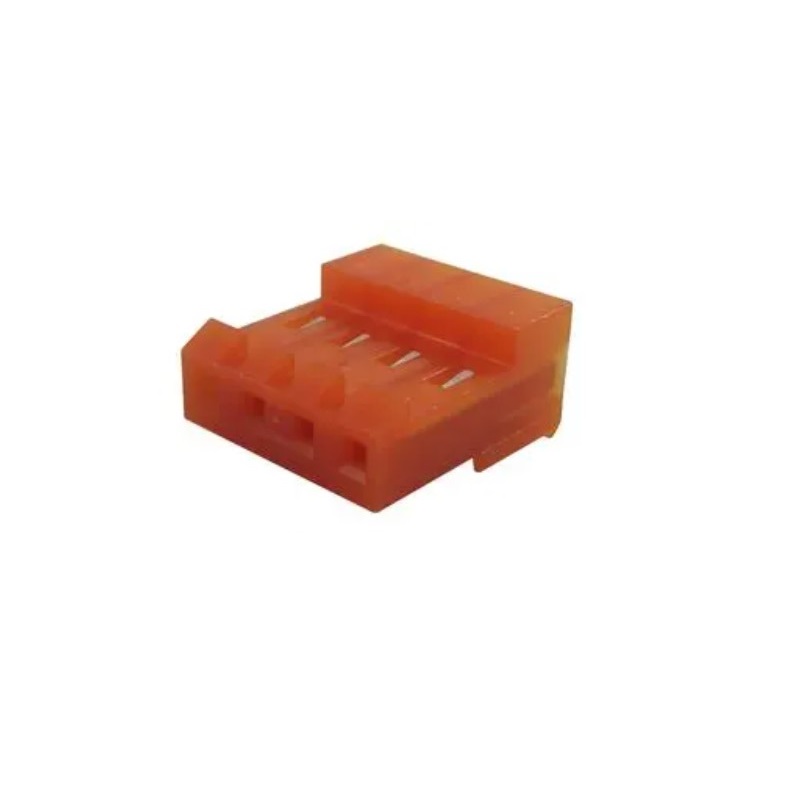

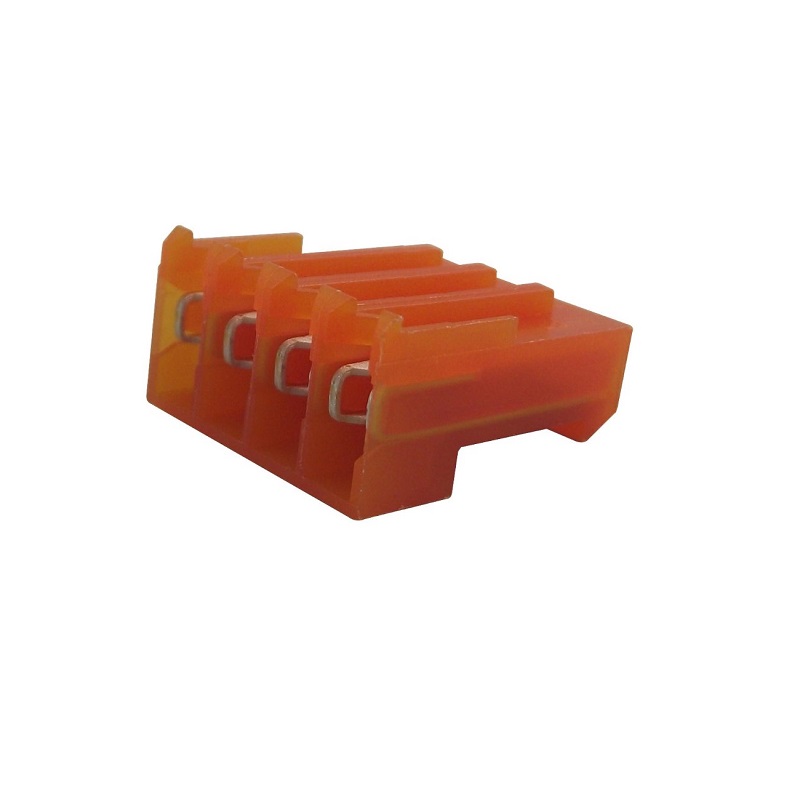

The 3-640426-4 is a 4-position 1-row Wire-to-Post Closed-end Receptacle with socket-type tin-plated copper alloy contacts and standard white nylon housing. The strain relief IDC connector has a nickel-pated underplate, locking lance contact retention, and locking ramp mating retention. It is suitable for use with the MTA-156 series header.
1 x 3-640426-4-HOUSING, 18AWG, 4WAY
| Connector Type | IDC Receptacle |
|---|---|
| Gender: | Female |
| Pitch Spacing (mm) | |
| No. of Rows | 1 |
| No. of Contacts | 4 |
| Mounting Type: | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Tin Plated Contacts |
| Product Series | MTA-156 Series |
| Weight | 0.004 kg |
| Dimensions | 9 × 7 × 1 cm |
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
